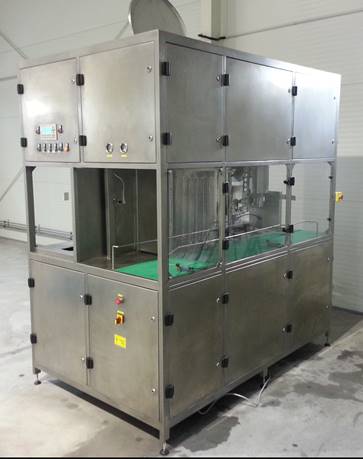

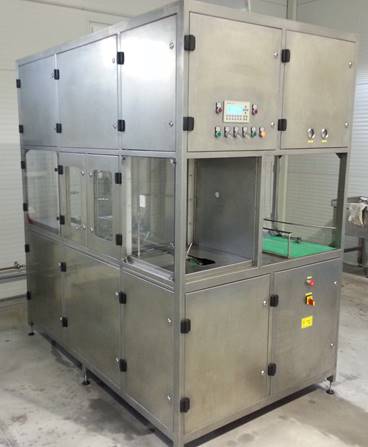

Automatic 18.9 l (5 gallon) Water-bottle Washing, Filling and Closing equipment



Depending on the version, the unit is suitable for washing, filling and sealing 18.9 L (5 gallon) and 11.35 L (3 gallon) water bottles of PRB or PET. The bottles do not require any human intervention after they have been placed in the machine. The operator places the bottles upside down in the bottle holder baskets, which the unit senses and starts a conveyor chain that moves the bottle through the wash phases, inverts, fills, and finally closes and transmits it to the operator who lifts it out of the machine. The bottles move all the way indoors to ensure maximum hygienic conditions. In addition to the usual settings on the PLC display, the operator will be informed of the cause of any malfunction. The machine is equipped with a self-cleaning program, which facilitates daily cleaning and disinfection.



FEATURES:

· Automatic and constant mixing of chemicals

· Heated chemical circulation

· Possibility to use 2 different detergents (optional)

· Thorough washing of the bottles inside and outside

· Easy-to-remove container for cleaning

· UV germicide in the filling area and caps

· Filling: by quantity, in a closed, disinfected place which are under slightly air pressure

· Closure: automatic cap dispensing and closure

· Connection to a vapor / steam extraction system

· Malfunction indication: no water, chemical, cap, compressed air

· Normal, intensive and cleaning program

· Manual switching of certain processes

· Adjustable chemical temperature, filling level, wash phases, cap closure phases

· Completely stainless steel design









SPECIFICATIONS:

Rated capacity: 100 bottles / hour.

Control: PLC with black and white display,

Number of washing places: 2

Wash: electrically heated (max. 50 ° C) with chemical

Chemical: 2 in 1 washer and disinfectant.

Rinse: with fill water, mains or pump (optional)

Wash and rinse mode: external and internal with fixed or rotating washers (on request)

Charging: from mains, flow meter with accuracy of 1%, the filling quantity can be adjusted on the PLC.

Cap closure: automatic dispensing and closure.

Caps upload into the dispenser: manual

Electrical connection: 400 V, 50 Hz, 9 kW (depending on version)

Water connection: 3/4 ”thread

Required water flow: 4000 liters / hour, minimum pressure 4 bar.

Compressed air demand: 120 liters/min, min. 6 bar
