Semi-automatic, 18.9 l (5 gallon) water-bottle washer, filler and sealer

Depending on the version, the unit is suitable for washing, filling and sealing 18.9 L (5 gallon), 11.35 L (3 gallon) PRB or PET water bottles. Upon request, the device may also be suitable for rinsing, filling, and screw closure of other types and capacities, such as 5, 6, 10 l bottles. Once electricity, water and compressed air are connected, production can begin immediately. The washing process is carried out in one compartment of the machine and then the bottle is moved to the other compartment for filling and closure. The machine is serviced manually, but workflows such as rinsing, filling and closing are automatic. The chemical is also automatically mixed with water, dispensing and placing the caps on the bottle. The operator can use the PLC's text display to find out the machine's status (such as the program currently running, chemical temperature, number of bottles) and information on the cause of a malfunction. The machine is equipped with a self-cleaning program, which facilitates daily cleaning and disinfection.

	MAIN TECHNICAL DATA: Rated capacity: 60 bottles / hour Control: PLC with black and white display Wash: electrically heated (max. 50 ° C) with chemical Chemical: 2 in 1 washer and disinfectant (Innofluid MFT or Diversey Divosan Forte, etc.) Rinse: with fill water, from water system or from buffer tank by pump (optional) Wash and rinse mode: external and internal rotating washers Charging: from mains, flow meter with accuracy of 1%, the filling quantity can be adjusted on the PLC. Cap closure: automatic dispensing and closure. Electrical connection: 400 V, 50 Hz, 6.5 kW Water connection: 2xC1 / 2 ” Required water flow: min 2500 l / h, minimum pressure 4 bar Required air connection: 100 l / min, 6 bar, Ø9 mm quick connection Dimensions (WxDxH): 1300x600x1950 mm Weight: approx. 300 kg.

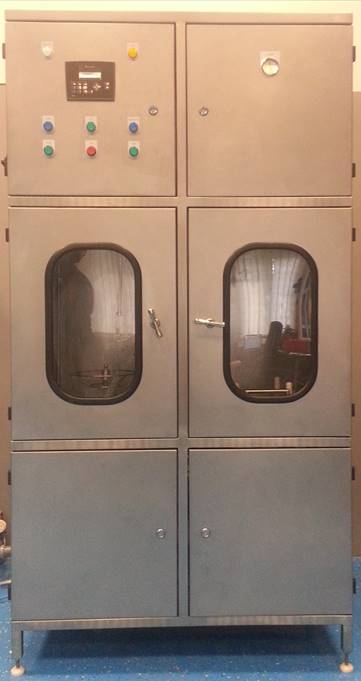

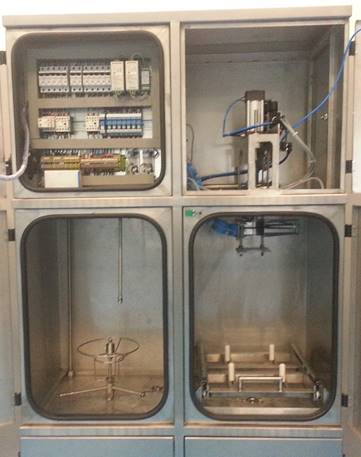

Machine with one washing compartment (50-60 bottle/hour)
Machine with two washing compartment (80-100 bottle/hour)

FALCON TECHNIKA BT

Budapest, Hungary
